Yaskawa Servo Motor Fiber Laser Cutting Machine For Tubes laser cutting machine for tubes auto feeding laser cutting machine

Yaskawa Servo Motor Fiber Laser Cutting Machine For Tubes laser cutting machine for tubes auto feeding laser cutting machine

Products Description

Our Laser Machine Feature

TP-12060 CNC optical fiber laser cutting machine is a complete set of laser cutting equipment. It is composed of fiber laser, chillers, fiber cutting head, cutting machine, control system, water and air system and ventilation system and so on. The whole machine tool is fixed by the workpiece, and the gantry mobile structure is a CNC laser cutting machine with two axes linkage and three axes control. Which X, Y axis linkage to achieve cutting plane feed, Z-axis tracking the workpiece surface floating. X axis and Y axis use AC servo motor to drive rack and rack feed, X axis is double gantry drive; Z axis ses AC servo motor to drive ball screw feed. Laser cutting head, AC servo motor, ball screw, vice guide, reducer, rack and pinion are imported well-known brands. The numerical control system uses the German brand laser special-purpose numerical control system, disposes the specialized cutting control software and the auxiliary programming software.

CNC fiber laser cutting machine for cutting stainless steel, carbon steel, galvanized steel, aluminum, titanium and other metal materials.

Product Paramenters

No.	Description	Brand
1	Fiber Laser Source	MAX/RAYCUS/BWT/RECI
2	Laser Cutting Head	RAYTOOLS/OSPRI
3	Tube Diagonal	≤ 500mm
4	Gear Box	MOTOREDUCER/APEX
5	AC servo motor and driver	YASKAWA
6	X axis gear and rack	YYC
7	Y axis gear and rack	YYC
8	Z axis screw rod	TBI
9	Linear guide rail	HIWIN
10	Pneumatic System	SMC
11	Water Cooling Machine	HANLI/S&A
12	Electric Components	Schneider
13	CNC Controller	Cypcut
14	CAD/CAM Nest software	Cypcut
15	Electrical Cabinet	BEVERLEY
16	Scraps bucket	BEVERLEY

Details Images

Machine structure

The machine tool frame structure is welded by high quality steel plate and steel tube,which have been processed by Vibratory Stress Relief and precision machining by CNC planer type milling machine. The complete structure has the feature of excellent shake proof capacity and rigidity, stability in high speed running and high accuracy cutting.

Machine body

International Supply Chain with Most Adequate Partners The outstanding Industrial Engineering methods for quality Assembly
International Industrial Standard and Enhanced SOP Quality Control and Assurance Tools Shipping Protection for Safe Seafreight

CNC controller

The laser cutting system is a full-featured open-loop control system specially launched for the pipe processing industry. Easy debugging, safe production, rich functions, excellent performance, etc.; supports and provides debugging, personalized, automated,

and information solutions, can realize memory cache, has a powerful cutting process batabase, and cuts a variety of different thicknesses and different plates, fast operation and efficient cutting

Laser cutting head

Laser cutting head with anti-crash function,
nicely sealed, high pressure resistant, auto-tracking system , anti-crash and stop system can protect good cutting quality and
longer the life of lens.

Laser source

1.Low Energy Consumption: Save energy and

protect environment

2.Photoelectric conversion rate is up to 30-35%

3.Low electric power consumption, it is only about 30%-35% of traditional CO2 laser cutting machine

4.Almost free maintenance

5.Up to 100000 hours of life time

Water cooling unit

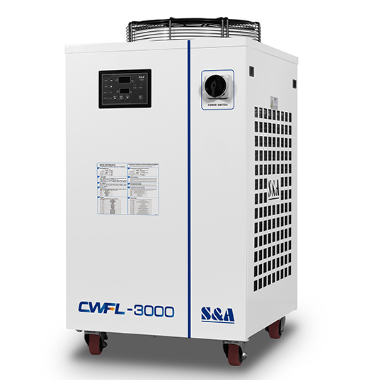

Water cooling machine, Large cooling capacity, stable performance, trouble-free, clean water quality, good heat exchange effect with fiber laser, and linkage signal to protect the laser

Linear Guide

In the smooth rolling motion mode of linear
guideway, the difference between static friction and dynamic friction is very small, can be reduced to 1/20~1/40 of sliding
guideway frictional resistance, so the positioning accuracy at the μm level can be achieved.

Shanghai Raylaser Intelligent Technology Co., Ltd. is located in Shanghai, the largest city in China. The economical and innovative centre of China.

        We are the high-tech enterprise dedicated to the research and development, production, and sales of laser application equipment.

       The main products include laser cutting equipment (flat cutting, pipe cutting, 3D cutting), welding equipment (platform welding, Robot welding, non-standard automatic special machine welding), electronics, environmental protection and dust removal, etc.

      The core team members mainly come from top domestic laser light source and system manufacturers. The team has been rooted in the Chinese laser industry for 17 years, witnessing the growth and development of the domestic laser industry, and has a deeper understanding of lasers and their applications.

        Raylaser is committed to manufacturing high-quality and cost-effective laser application equipment to serve new and old friends. At present, the products are mainly sold to domestic and Russian speaking regions, as well as overseas markets such as Brazil and Argentina.
