| Categories | COFDM Video Transmitter |
|---|---|
| Place of Origin: | China |
| Brand Name: | Kimpok Technology |
| Model Number: | KP-AHD200MW |
| Packaging Details: | International standard packing |
| Price: | Negotiation |
| Certification: | CE Cerfication |
| MOQ: | 1 Piece |
| Payment Terms: | T/T, PayPal, Alipay |
| Supply Ability: | 5000/month |
| Delivery Time: | 3-7 work days |
| Product name: | fpv wireless video transmitter |
| Modulation: | COFDM 2K |
| Power: | 12V DC |
| Video encoding: | H.265/H.264 |
| Resolution: | 1080p@60fps |
| RF power: | 200mW |

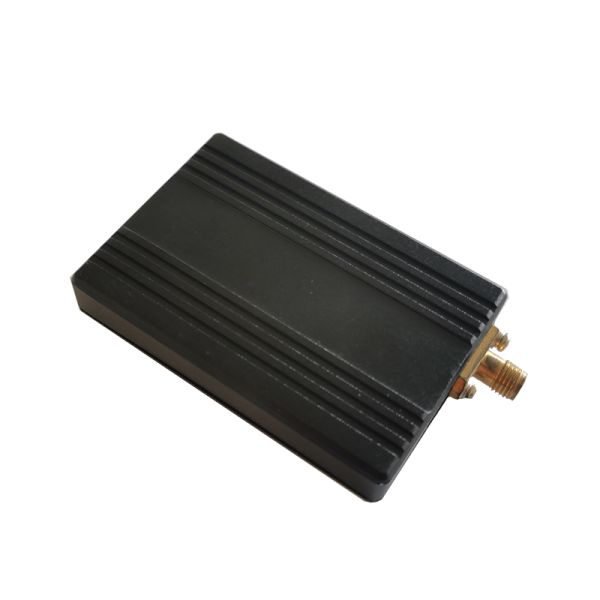

Lightweight UAV / FPV COFDM Video Transmitter 1080P AHD Wireless AV Sender
COFDM Video Transmitter Introduction:
KP-AHD200MW 1080P HD transmitter is a powerful HD transmit system,using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-HD digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment. Support full HD 1080P H.265 encoding format and HD input as well support stereo balance audio input and narrowband transmission system.
Robot Transmitter Features:
Specification:
| Voltage | DC5V~DC14V |
| Current | ≤0.6A DC12V |
Video input | CVBS: support HD1080P,720P,576,480; 30FPS |
| Control input | RS232; 19200 |
| Frequency | 300mHz-900mHz (optional), or other frequency customized |
| Bandwidth | 2/2.5/4/8MHz(adjustable) |
| Output power | 200mW |
| Data encryption | AES 128bit (user-defined password) |
| Modulation | COFDM |
| Modulated mapping | QPSK(4QAM); 16QAM; 64QAM |
| Bandwidth | 2/4/6/8M (adjustable) |
| FEC | 1/2, 2/3, 3/4, 7/8 |
| Guard Interval | 1/32, 1/16, 1/8, 1/4 |
| Video Compression | H.265/H.264/MPEG-4 |
| Standard Video Format | PAL/NTSC (auto adaptation) |
| Parameter control method | Set the related parameters through the control panel |
| RF Interface | SMA |
| Working temperature | -20℃~75℃ |
| Dimension | 132*90*26mm |
| Weight | 420g |
|
