| Categories | Stone Profile Cutting Machine |
|---|---|
| Brand Name: | XIANDA MACHINERY |
| Model Number: | BLMM-1800MAX-2D-A/B |
| Place of Origin: | Jinjiang, Fujian, China |
| Certification: | API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF |
| MOQ: | 1 SET |
| Price: | To be negotiable |
| Packaging Details: | Plastic Package, Suitable for Sea Transportation |
| Delivery Time: | 1 month |
| Payment Terms: | L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others |
| Supply Ability: | 1000 Sets/Year |
| Product Name: | Stone Profile Cutting Machine |
| Cutting Surface: | Flat |
| Maintenance: | Easy |
| Safety Protection: | High |
| Operation Mode: | Automatic |
| Cutting Depth: | High |
| Cutting Width: | Wide |
| Cutting Edge: | Smooth |
| Trolley Size: | 1300*3000mm/1400*3500mm |
| Cutting Method: | Laser |
| Cutting Accuracy: | High |
| Model No: | LCMM-1300/1800 |
| Application: | Machinery & Hardware |
| Max Cutting Diameter: | 2500mm |
| Usage: | Cutting |
| Hs Code: | 84641090 |
| Max Cutting Height: | 1150mm |
| Blade Diameter Range: | 400-600mm |
| Max Cutting Depth: | 150mm |
| Power Source: | Electric |

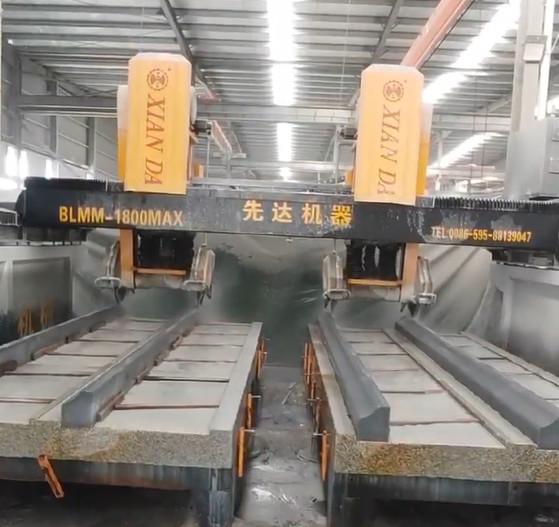

This machine adopts three-axis CNC system control, bridge double beam heavy structure, Cuting Head lifting structure use four guide column + sleeve copper, left right traveling use bottom wheel, combined the accuracy of linear guide rail and the power of profiling machine. It has the advantages of high stroke, high efficiency, high stability, etc.
The system includes roughcuting, fine cuting, fine miling and other functions, and is suitable for large-scale special-shaped stone processing.
- Installation and setup assistance
- Regular maintenance and inspection
- Troubleshooting and repair services
- Training on machine operation and safety
Product Packaging:
Shipping:
| Parameter | Unit | BLMM-1800MAX-2D-A | BLMM-1800MAX-2D-B |
| Blade diameter | mm | 400-700 | 400-700 |
| Lifting travel | mm | 600 | 600 |
| Processing length | mm | 3500 | 3500 |
| Trolley size | mm | 1800*3500*2pcs | 1800*3500*2pcs |
| Main motor | kw | 18.5*2/22*2(optional) | 18.5*2/22*2(optional) |
| Gross power | kw | 46/53(optional) | 46.5/53.5(optional) |
| Y axis transimission structure | / | Walking wheel | Linear guide |
| Y axis transimission mode | / | Single Y axis drive | Dual Y axis drive |
| Outline dimension | mm | 6500*6450*3600 | 6200*6200*3600 |
| Water consumption | m³/h | 12 | 12 |
|
