Name: MS104KM Data Logger Rechargeable Portable Gas Detector O2 CO H2S LEL For Confined Space
Brand: Zetron
Price: 329 USD

Home > Level Measuring Instruments >

MS104K-M Data Logger Rechargeable Portable Gas Detector O2 CO H2S LEL For Confined Space

Categories	Portable Single Gas Detector
Brand Name:	Zetron
Model Number:	MS104K-M
Certification:	CE, ISO13485, ISO9001
Place of Origin:	China
MOQ:	1
Price:	329-345USD
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 set/month
Delivery Time:	3-7 days
Packaging Details:	paper carton,15X10X5cm,4kg
Product Name:	4 in 1 Portable Personal Safety Protection Gas Detector O2 H2S CO LELL
Usage:	Industrial, laboratory, Other
Detecting Gas:	Can be customized upto 500 gases 16 at a same time
Alarm Type:	Vibration+Sound+Light Alarm
Sensor:	Imported High-precision Sensor
Sampling method:	pump and diffusion sampling
Response time:	T90<20s
Size:	90×70×38mm(L×W×H)
Weight:	200g

Contact Now

Add to Cart

Product Details
Company Profile

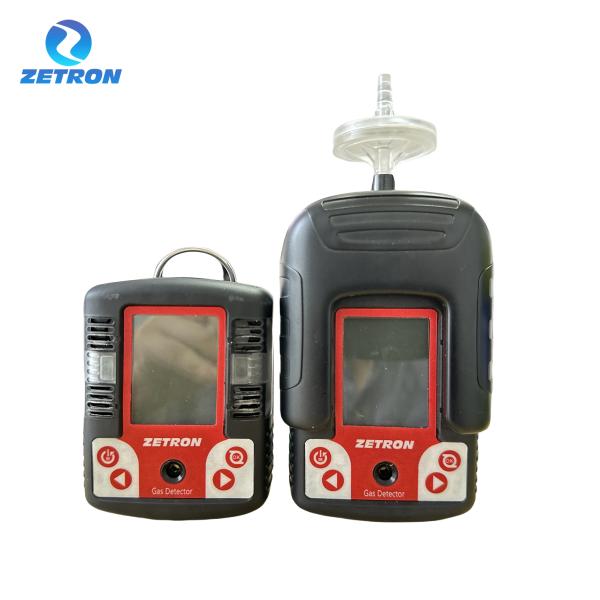

MS104K-M Data Logger Rechargeable Portable Gas Detector O2 CO H2S LEL For Confined Space

MS104K-M Four in One Gas Detector
OVERVIEW
4 in 1 Portable Personal Safety Protection Gas Detector O2 H2S CO
LEL is mainly used to quickly and accurately detect gas leaks or
alarm when gas concentration exceeds the standard. The main
detection principles of gas detection are: electrochemistry,
infrared, catalytic combustion, thermal conductivity, PID
photoionization, etc.
FEATURES
★Combined with external pump
★Pumped and diffusion 2-in-7 type
★With pump clogging alarm funtion
★With fall-down alarm function
★100,000 data storage function
★IP68 protection level
★Support computer data transfer

APPLICATION SCENES

Widespread applications for MS104K-M include gas, warehouse, fire safety, emergency rescue, confined spaces, petroleum, chemical industry, coal mine, metallurgy refining, medical, and environmental protection, among other fields.

SPECIFICATION

Delection Gases	1-4 gases(Carbon monoxide CO,hydrogen sufide H2S,oxygen O2,flammable gas Ex,carton dioxide CO2 VOC,etc) Depends on site environment and user needs
Gas Ranges	0-1000,5000,10000ppm.100%Vol,100%LEL.Depends on site environment and user needs
Resolution	0.001ppm (0-10ppm high precision) 0.01ppm (0-10 ppm) 0.01ppm (0-100 ppm) 0.1ppm (0-1000 ppm) 1ppm (0~5000 ppm and above) 0.1%LEL:0.01%Vol
Unit Display	Optional units:umol/mol ppm,mg/m3,%Vol,%LEL
Gas Sensor Principle	Electrochemistry,catalytic combustion,infrared,thermal conductivity,semiconductor,PID photoionization,etc.Depending on the range,application and user needs
Sensor Life	Electrochemistry 2-3 years,catalytic combustion 2-3 years,infrared 5-10 years,thermal conductivity 2-5 years, PID 2-3 years
Detection	Diffusion/pumping type,standard configuration: external pump
Display	2 inch LCD
Display Content	Real-time concentration,unit,gas name,alarm status,time,storage,communication status,power,charging status,etc
Detection Accuracy	Typical accuracy≤±3%FS
Response Time	T90≤ 20seconds(general)
Working Power Supply	DC7.4V
Battery Capacity	7.4V,1400mAh Rachargeable polymer battery,without overcharge,overdischarge,overvoltage,short circuit and oveheating protection funchions
Operating Hours	More than 100 hours (Diffusion type,non-catalytic sensor)
Alarm Volume	More than 90dB
Usage Environment	Temperatune:-20℃-+50℃,can be customized-40℃+70℃,relative humidity:10-95%RH
Communicalion Interfaoe	Standard Type-C port for communicafion,standard cradle charging base (Fully charged in 2 hours)
Data Storage	Standard capacity 200,000 data recording, supports local viewing,detection or data export,and the storage time interval can be set arbitrarily
Language	Chinese or English optional,defaut Chinese interface
Explosion-proof Type	Intrinsically safe Exia II CT4 Ga,Atex certificate
Protection level	IP68
Dimension	907038mm(L*WxH)
Weight	About 380g
Standard Accessories	Instructions,certficate,USB Charger (including data cable),charging dock,instrument case,external pump caltbration cover),fiter individual

Product Tags:

Rechargeable Portable Gas Detector

Confined Space Portable Gas Detector

O2 CO H2S LEL Gas Detector

MS104K-M Data Logger Rechargeable Portable Gas Detector O2 CO H2S LEL For Confined Space
