Name: CE PLC Control Architecture Hexagonal Wire Mesh Machine
Brand: JINTE
Price: 19500 USD

CE PLC Control Architecture Hexagonal Wire Mesh Machine

Categories	Hexagonal Wire Mesh Machine
Brand Name:	JINTE
Model Number:	JT-H-3420
Certification:	ISO CE
Place of Origin:	China
MOQ:	1 set
Price:	USD19500/set
Payment Terms:	L/C, D/A, D/P, , T/T, Western Union
Supply Ability:	1 set /month
Delivery Time:	30 days
Packaging Details:	Packed in container with fixed iron rope and wooden stick.
certificate:	ISO CE
Warranty:	2 Years
Name:	Full Automatic Chicken Cages Wire Mesh Machine
Type:	Fully Automatic
Application:	Hexagonal wire mesh making
Control system:	PLC+touch Screen
After-sales service provided:	Engineers available to service machinery overseas,Video technical support
Wire diameter:	0.35-3.0mm

Contact Now

Add to Cart

Product Details
Company Profile

CE PLC Control Architecture Hexagonal Wire Mesh Machine

PLC Controled Hexagonal Mesh Making Machine For Architecture In Sales

Product Description

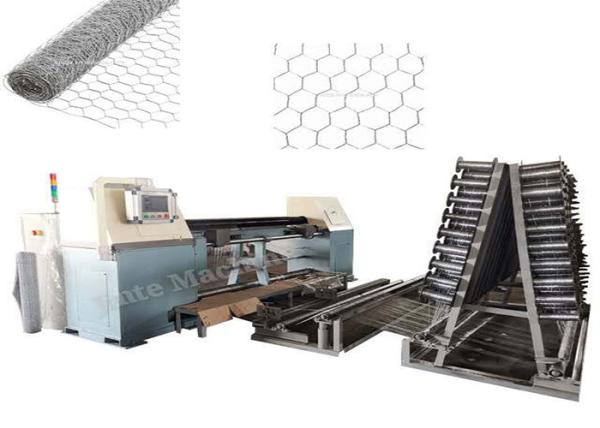

Hexagonal mesh machine, also named chicken mesh machine, is the special equipment to produce the hexagonal wire netting mesh.This machine is controlled by PLC, and has the function of stopping automatically when the weaving is finished or there is a problem. It has high safety and efficiency.

Selling points

1.PLC control,touch screen.More technical parameters can be set and adjusted on the touch screen.It's very convenient for workers to operate.

2.More accurate,less broken wire and mesh.Once the wire or mesh is damaged,the alarm will reflect and the machine will stop automatically.

3.The lubrication system makes the machine work easier.

4.The faster the speed is,the more production capacity will be increased.

Parameter table

MESH WIDTH	NETTING WIDTH	WIRE DIAMETER	SPEED	OUT SIDE DIMENSIONS	MOTOR	WEIGHT
(MM)	(M)	(MM)	(M)	(M)	(KW)	(T)
15×22	1.5 - 4.7	0.35-0.7	65	4.2-6.2×1.7×1.6	11.6	3.8-5.0
20×35	1.5 - 4.7	0.35-0.7	85	4.2-6.2×1.7×1.6	11.6	3.8-5.0
25×38	1.5 - 4.7	0.35-1.2	100	4.2-6.2×1.7×1.6	11.6	3.8-5.0
30×40	1.5 - 4.7	0.35-1.2	110	4.2-6.2×1.7×1.6	11.6	3.8-5.0
40×53	1.5 - 4.7	0.5-2.0	150	4.2-6.2×1.7×1.6	11.6	3.8-5.0
50×85	1.5 - 4.7	0.6-2.2	170	4.2-6.2×1.7×1.6	11.6	3.8-5.0
80×100	1.5 - 4.7	0.6-2.4	200	4.2-6.2×1.7×1.6	11.6	3.8-5.0
100×140	1.5 - 4.7	0.6-2.4	220	4.2-6.2×1.7×1.6	11.6	3.8-5.0

Application
