| Categories | Security Alarm Cable |
|---|---|
| Brand Name: | OEM Produce |
| Model Number: | Alarm Cable |
| Certification: | CPR. |
| Place of Origin: | Hangzhou, China |
| MOQ: | 10km |
| Price: | FOB Shanghai Price: 30USD/200m |
| Payment Terms: | TT. LC |
| Supply Ability: | 5000km/ Month |
| Delivery Time: | 20days after deposit |
| Packaging Details: | 100M. 200M. 300M. 1000FT. 500M. Reel |
| Useful: | Home Security Alarm Control |
| Jacket Color: | White PVC or Customized |
| Spec: | Shielded 8C 0.22mm² |
| Inner Conductor: | CCA/ BC/ TC |
| Conductor Type: | Stranded or Solid |
| Insulation: | PVC or PE |
| Packing: | 100M Reel or Customized |

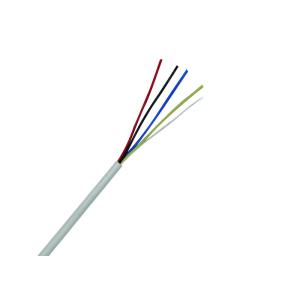

Unshielded 8C 0.22mm² Security and Alarm Cable for Smart Home CCTV Control
| C: Structure of unshielded 0.22mm² soft alarm cable | |||
| Serial NO. | Section | Specification | Overall Diameter(mm) |
| C-01 | 2*0.22mm² | 2*7/0.20 | 3 |
| C-02 | 4*0.22mm² | 4*7/0.20 | 3.5 |
| C-03 | 6*0.22mm² | 6*7/0.20 | 4.1 |
| C-04 | 8*0.22mm² | 8*7/0.20 | 4.5 |
| C-05 | 10*0.22mm² | 10*7/0.20 | 5.2 |
| C-06 | 12*0.22mm² | 12*7/0.20 | 5.4 |
| C-07 | 14*0.22mm² | 14*7/0.20 | 5.8 |
| C-08 | 20*0.22mm² | 20*7/0.20 | 6.8 |
| C-09 | 30*0.22mm² | 30*7/0.20 | 8.5 |
| C-10 | 40*0.22mm² | 40*7/0.20 | 10 |
| C-11 | 2*0.5+2*0.22mm² | 2*16/0.20+2*7/0.20 | 3.9 |
| C-12 | 2*0.5+4*0.22mm² | 2*16/0.20+4*7/0.20 | 4.5 |
| C-13 | 2*0.5+6*0.22mm² | 2*16/0.20+6*7/0.20 | 4.9 |
| C-14 | 2*0.5+8*0.22mm² | 2*16/0.20+8*7/0.20 | 5.7 |
| C-15 | 2*0.5+10*0.22mm² | 2*16/0.20+10*7/0.20 | 6 |
| C-16 | 2*0.5+12*0.22mm² | 2*16/0.20+12*7/0.20 | 6.3 |
| C-17 | 2*0.75+2*0.22mm² | 2*24/0.20+2*7/0.20 | 4.2 |
| C-18 | 2*0.75+4*0.22mm² | 2*24/0.20+4*7/0.20 | 4.9 |
| C-19 | 2*0.75+6*0.22mm² | 2*24/0.20+6*7/0.20 | 5.3 |
| C-20 | 2*0.75+8*0.22mm² | 2*24/0.20+8*7/0.20 | 6.2 |
Electrical Characteristics
| Temperature Rating | -20℃ to 60℃ |
| Operating Voltage | 24/12V |
| DC Resistance per Conductor@ 20℃ | 6.32 Ohms/1M’Nom |
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
