CP1003742 Li MnO2 Non Rechargeable Lithium Battery 3V Soft Pack Primary Battery

Categories Ultra Thin Battery
Brand Name: SER or OBM
Model Number: CP1003742
Certification: CE, MSDS,UN38.3
Place of Origin: China
MOQ: 3000PCS
Price: 1-12USD/PC
Payment Terms: T/T, L/C
Supply Ability: 50000PC/Day
Delivery Time: 10-15days
Packaging Details: Standard
Model Name: CP1003742
Voltage: 3.0V
Type: Li-MnO2 Battery pouch cell
Capacity: 4000mAh
Work temperature: -40℃~+70℃
Color: Silver
Applications: RFID reader,Personnel positioning card,GPS tracker,Portable listening device,RFID Tag,LoRaWAN devices, IoT,Animal identification,Smart Card
OEM/ODM:: Acceptance
  • Product Details
  • Company Profile

CP1003742 Li MnO2 Non Rechargeable Lithium Battery 3V Soft Pack Primary Battery

CP1003742 Customized Li-MnO2 Non-rechargeable lithium Battery 3V Soft Pack Primary Battery

Specification of CP1003742 Customize Li-MnO2 battery:

Specification Parameters CP1003742 Customize Li-MnO2 battery
Nominal Voltage 3.0V
Capacity 4000mAh @ 0.2C to 2.0 V @ 23° C
Dimension 10*37*42mm
Electrical Constant Discharge Current 1000mA
Max Discharge Current 2000 mA
Physical Terminals/ Connector Nickel Tabs, wire, plug or OEM
Others Working Temperature -20 ~ +70℃
Storage Temperature 0~25℃
Applications RFID reader,Personnel positioning card,GPS tracker,Portable listening device,RFID Tag,LoRaWAN devices, IoT,Animal identification,Smart Card
Tags CP1003742,Customized Li-MnO2, Non-rechargeable Battery, 3V Soft Pack Primary Battery,Customized Li-MnO2 battery, Customized Soft Pack Primary Battery,Customized Primary Battery

Features of CP1003742 Customize Li-MnO2 battery:

QQ截图20230531102154.jpg1. Wide temperature range

High and low temperature resistance, stronger adaptability to the environment,

wide working temperature range, can be better adapted to different environments.

2. More durable power

Large current discharge, large product capacity, high Current. Because of its large surface area,

it has a larger discharge current and a maximum capacity of 4,000 mah,

which makes it more suitable for devices with high capacitance.

3. High Factor of safety do not explode, do not catch fire, and bulge rates are less than 1 in 10,000,

far lower than the same type of battery.

4. Self-discharge rate low

Battery placement for 5 years, remaining power is still more than 60%

5. Support customized battery

To support mass customization, to meet different customer needs, the fastest delivery can be 7 days



Thin Li-MnO2 Battery Model List

Model Size Nominal Capacity Max Continuous Discharge Current Max Pulse Discharge Current
CP042529 22mAh 2mA 4mA
CP042722 15 mAh 1mA 2mA
CP042922 15mAh 1mA 2mA
CP044040 50mAh 5mA 10mA
CP044560 100mAh 10mA 20mA
CP052039 25 mAh 2 mA 4 mA
CP052722 22mAh 1mA 2mA
CP053050 80mAh 15mA 30mA
CP054248 100mAh 20mA 40mA
CP064348 200mAh 20mA 50mA
CP082922 50 mAh 20mA 80mA
CP084248 320mAh 20mA 50mA
CP102015 30mAh 2mA 5mA
CP104248 420mAh 100mA 200mA
CP105050 420mAh 100mA 200mA
CP105075 450mAh 200mA 300mA
CP105256 500mAh 30mA 50mA
CP124444 420 mAh 75 mA 150mA
CP142828 160mAh 25mA 50mA
CP142828H 140mAh 50mA 100mA
CP153030 170mAh 40mA 80mA
CP153030H 140mAh 50mA 100mA
CP154580 1000mAh 150mA 300mA
CP151015 18mAh 0.5mA 1mA
CP161230H 45mAh 16mA 30mA
CP164548 700mAh 50mA 100mA
CP181234 125mAh 25mA 50mA
CP183123 150mAh 45mA 75mA
CP202540 350mAh 75mA 150mA
CP203030 230mAh 50mA 100mA
CP203034 270 mAh 50 mA 100mA
CP203040 210mAh/380MAH 100mA 200mA
CP204517 210mAh 20mA 50mA
CP204547 750mAh 50mA 100mA
CP222920 150mAh 45mA 75mA
CP224248 850mAh 100mA 200mA
CP225050 1000mAh 200mA 400mA
CP225080 1700mAh 200mA 400mA
CP242030 230mAh 50mA 100mA
CP255050 1200mAh 150mA 300mA
CP251525 150mAh 40mA 80mA
CP251626 150mAh 60mA 150mA
CP252525 250mAh 30mA 60mA
CP255047 1250mAh 150mA 300mA
CP255080 2050mAh 300mA 600mA
CP302525 350mAh 75 mA 150 mA
CP304580 2500mAh 200mA 500mA
CP321626 250mAh 50mA 100mA
CP334728 700mAh 100mA 200mA
CP352440 750mAh 100mA 300mA
CP355050 2000mAh 500mA 1000mA
CP402020 275mAh 50mA 100mA
CP453450 1700mAh 300mA 600mA
CP501525 350mAh 80mA 150mA
CP502440 1200mAh 150mA 300mA
CP503436 1550mAh 200mA 500mA
CP503742 1700mAh 300mA 600mA
CP505050 3000mAh 500mA 1500mA
CP543537 1500mAh 200mA 400mA
CP603450 2400mAh 500mA 1000mA
CP603956 3300mAh 800mA 1500mA
CP702242 1500mAh 200mA 1200mA
CP703028 1000mAh 200mA 400mA
CP703448 2000mAh 1000mA 1500mA
CP806468 8000mAh 2000mA 4000mA
CP7839109 9000mAh 2000mA 3000mA
CP9V 1200mAh 150mA 300mA

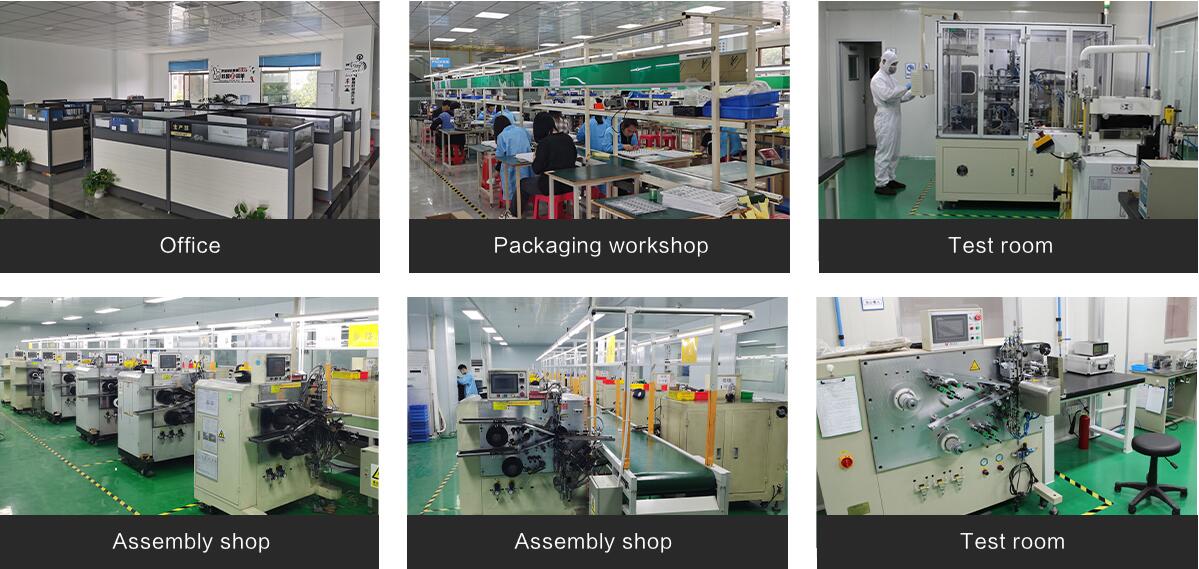

Battery Production:


What we offer:

1. Strictly quality control

2. First rate service

3. Professional technical advisory

4. Complete production base

5. Continuous supply guarantee

We have a professional R&D team, we are experienced to customize battery packs according to clients' demands and make most suitable battery solution for them.

We have got our mindset stablished to be the best energy solution provider.


applications (2).jpg

Widely used for :

RFID BATTERY / ID card battery / Payment system battery etc

a. Civilian field: AMR of common instruments and CMOS circuit boards

b. Various smart meters: smart electric meters, water meters, heat meters and gas meters

c. Memories and standby power supplies: memory backup, clock power supplies and data backup power supplies

d. Radio alarm equipment/sensors: smoke alarms and temperature monitors

e. Remote monitoring systems: positioning devices and marine telemetry systems

f. Automotive electronics: tire pressure monitoring systems

g. Industrial field: automation instrumentations and equipment, oil wells, mines, medical equipment, burglar alarm, wireless communication, sea survival, etc.

h. Modern national defense and military fields: aviation, spaceflight, marine electronics, air-sea-land weapons, etc.

We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC applications.

NO MOQ with fast lead time.

Welcome for any customized.

All we do what we want to help you to start your good idea.

LiSOCL2 battery LiMnO2 battery Ultra thin battery Lipo battery LiFePO4 batteries Portable power station
