Details of Full Stripping Paper Die Cutting Machine 7500s/H 400×360mm

Full Stripping Paper Die Cutting Machine 7500s/H 400×360mm

Categories	Paper Die Cutting Machine
Brand Name:	PRINTYOUNG
Model Number:	PRY-1050CE
Certification:	CE
Place of Origin:	China
MOQ:	1 Set
Payment Terms:	L/C, T/T
Supply Ability:	20 Set/Sets per Month
Delivery Time:	45 days
Packaging Details:	Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Max. sheet size:	1050×750mm
Min. sheet size:	400×360mm
Max. die cutting size:	1040×720mm
Gripper margin:	9-17mm
Dimension of inner plate frame:	1080mm×745mm
Sheet size:	80~600g/㎡
Precision of die cutting:	≤±0.1mm
Max. working pressure:	300t
Max. working speed:	7500s/h die cutting
Max. paper feeding stacking height:	1600mm(including wooden pallet)
Max. paper collecting stacking height:	1400mm(including wooden pallet)
Main motor power:	11kw
Whole machine dimension:	7700mm(length: including pre-feeding track) × 4600mm(width: including the pedal) × 2400mm
Total weight of machine:	About 17t
Full-load wattage:	16.9 kw

Contact Now

Add to Cart

Product Details
Company Profile

Full Stripping Paper Die Cutting Machine 7500s/H 400×360mm

Products Description

Technical Parameters

PRY-1050CE Automatic Die-cutting Machine with Stripping
Max.Sheet Size	1050×750 mm
Min.Sheet Size	400×360 mm
Max.Die Cutting Size	1040×720 mm
Gripper Margin	9-17 mm
Dimension of Inner Plate Frame	1080 × 745 mm
Sheet Size	80~600 g/㎡
Precision of Die Cutting	≤±0.1 mm
Max.Working Pressure	300 t
Max.Working Speed	7500 s/h die cutting
Max.Paper Feeding Stacking Height	1600 mm (including wooden pallet)
Max.Paper Collecting Stacking Height	1400 mm (including wooden pallet)
Main Motor Power	11 kw
Total Weight of Machine	About 17 t
Full-Load Wattage	16.9 kw
Whole Machine Dimension	7700mm(length:including pre-feeding track) ×4600mm(width:including the pedal)×2400 mm

Configuration

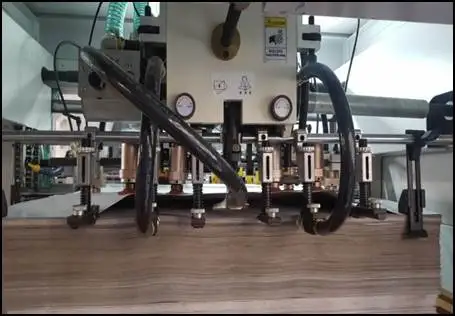

Feeder, Paper Feeding
 * Precision feida head that adopts European manufacturing technology,can be used for card paper, corrugated paper and grey board
 * Four suction and four sent, the suction angle and height can be adjusted according to the deformation of paper
 * Unique paper receiving mechanism, suitable for different deformed papers
 * High-speed feida head is specially manufactured for special aluminum alloy material, and all parts are imported
 * Dual-feida head anti-collision detection device
 * Main and auxiliary paper feeding, can switch without stopping the machine
 * A set of pre-feeding mechanism (optional)
 * Fish scale type paper feeding, smooth and accurate
 * Micro-adjusting mechanism for paper feeding platform, can be adjusted without stopping the machine
 * Two-purpose paper feeding machine
 * A set of auxiliary paper support device and two sets of paper supporting board

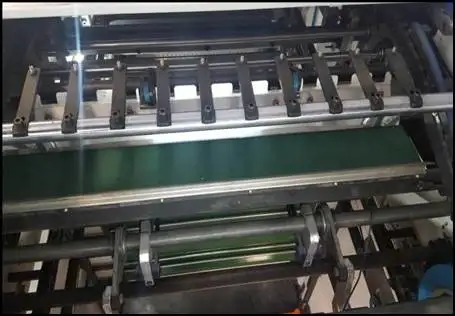

Conveying Paper Platform
 *Electromechanical dual-sheet detector
 *Adopt advanced control system to control the speed of conveying device, making paper feeding smoothly and reducing collision
 *Conveying paper platform can be controlled separately, and vacuum conveying paper platform is optional
 *Imported conveying paper belt

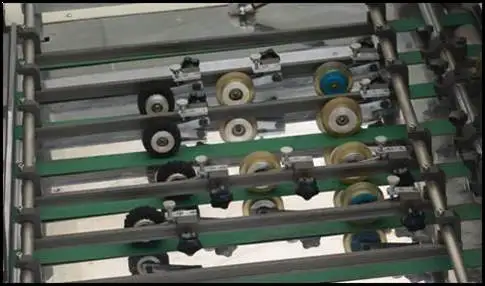

 *Super wear-resistant polyurethane conveying paper wheel
 *Adjustable rubber wheel and brush wheel, to ensure accurate positioning when they reached front gauge and side gauge.
 *Front gauge detection,to guarantee the arrival rate of paper
 *Adopt left/right dual-push pull gauge way to meet different printing and alignment requirements

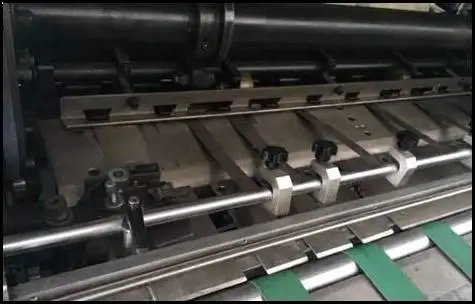

Die Cutting Part
 *Pressure-containing member adopts high-strength nodular cast iron-QT500 and special casting process, thus it has high strength and never deforms.
 *The Ni-Cr-Mo metal steel crank shaft through the special craft .processing,imported from Germany.
 *Super wear-resistant worm and gear imported from Taiwan.
 *Knife template turnover device that is convenient and fast.
 *Strong oil supply lubrication system.
 *Imported intermittent box with torque limit & limit cutting protector, to ensure the machine is smooth and safe operation.
 *High-precision 240 degree intermittent mechanism.
 *Pneumatic locking device, safe and fast.
 *High-speed rotary joint.
 *Automatically adjust the pressure ,when the maximum pressure reached 300t.
 *Adopt advanced Taiwan TECO motor, to increased the die cutting speed to 7500 sheets/hour.
 *Die cutting plate frame, adopting central positioning system and being equipped with micro-adjustment device.
 *10.4 inch color screen, displaying the working state of machine all the time.
 * Synchronous belt import from Japan,ensure a wide range of speed options and a huge bearing capacity,no maintenance required,long service life.
 * Intermittent mechanism import from Taiwan, ensure machine running accurately,main engine with overload protection device and atorque limiting clutch, ensure auto slips and stops immediately when tooth raw subject to external shock, reduce damage to the fuselage and dentition accuracy ,to avoid the occurrence of failure.
 * Auto oil pump circulating cooling device,ensure main engine lubricate while running long time with high speed .
 * With oil press display ,oil pressure alarm device.

Electrical Parts* Man-machine interactive touch function, can set different long pull and short pull.
 * The alarm will be triggered when the foil is shorter than 6cm.
* The computer deal with foil monitoring system, used to display remaining and have used foil length.

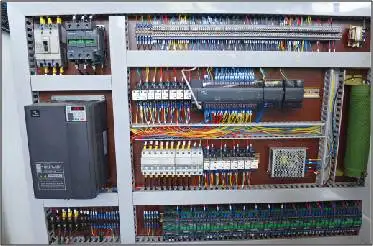

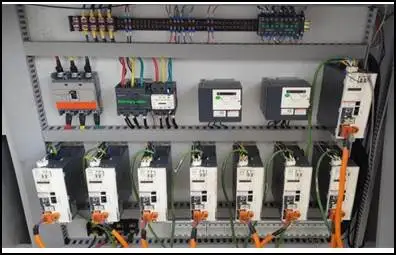

* Machine with full set of Schneider (French) Electric components and PLC control system ,ensure machine running stability.

Stripping Part (Front)
 *Adopt upper and lower dual-frame stripping mechanism
 *Adopt male/female template to realize various stripping
 *Adopt central positioning device that matches with the die cutting part to reduce plate replacing time
 Stripping Part (The Fourth Side of the Waste Paper)
 *Afrer get the paper , tooth raw get off the last side of the waste paper, then use belt feeding side face,in order to achieve the purpose of total four sides stripping

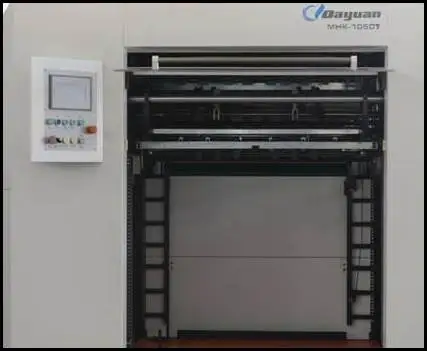

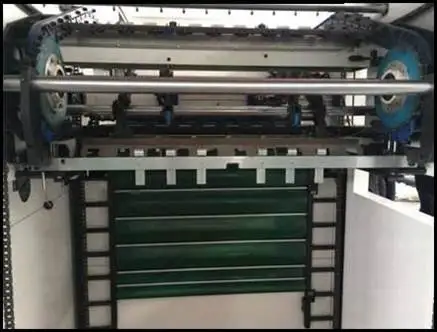

Paper Collection Part*Automatic paper aligning device and two blowers for paper collection can ensure neat collection of thin and thick papers
 *Paper collection part with touch screen control,it is convience for operation and has data display, and all operations can be performed through the touch screen
 *Paper collection part is equipped with control panel to realize more personalized operation
 *Paper collection photoelectric device, to ensure neat paper collection
 *Automatic lift control system of paper collection platform
 *Manual auxiliary paper collection system
 *The main chain protection device
 *Prevent the paper returning device
 *Equipped with non-stop device
 *Paper collecting part with a 10.4 inch screen ,can control whole machine

Customer

Company Profile

Why Choose Us

Product packaging

Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

Q9. How can you assure the machines’ quality?

A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?

A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material.

Q11. What’s the payment term?

A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.
